Wire EDM module

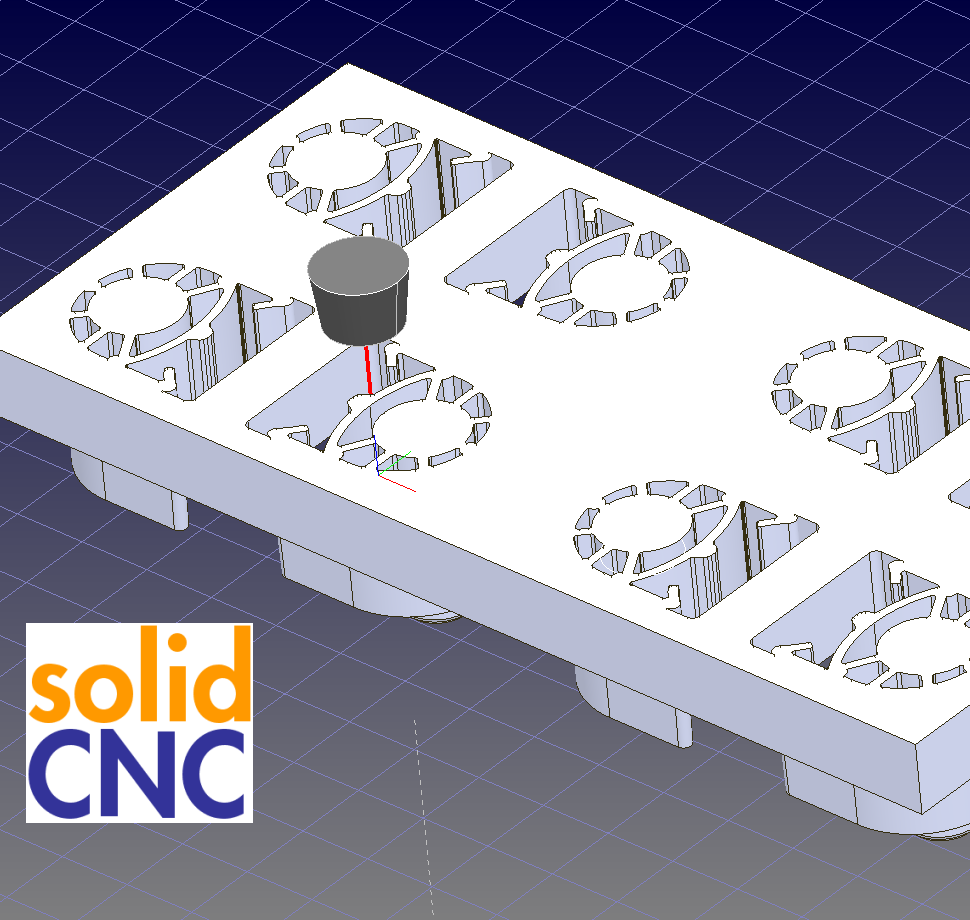

SolidCNC wire EDM module can produce wire operations by using 2D wire frame or 3D solid models and produce outputs for different wireEDM machine tools.



Courtesy of Kayapen Sinop 2013– Joe Mars wire EDM machine tool

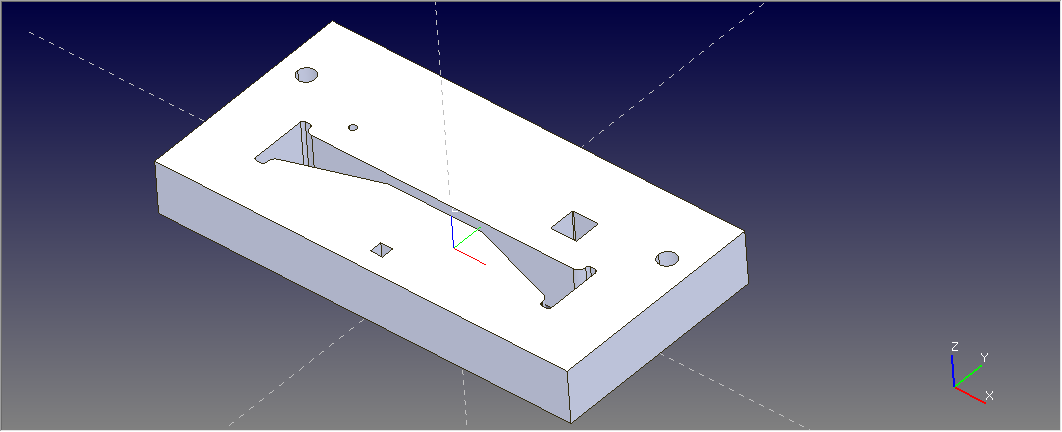

Courtesy of Pırıltı Makina İstanbul - İmes 2012 – Sheet metal cutting mold production by Excetek wire EDM machining center

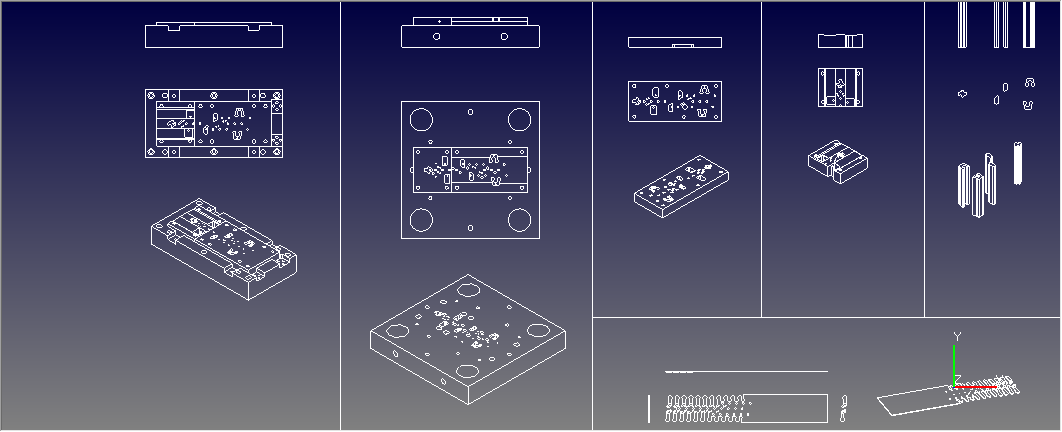

Courtesy of Tanatar Kalıp Eskişehir 2012 – On a Makino wire EDM machining center , SolidCNC NC outputs are used for sheet metal progressive die production . 2D Dxf CAD data is used

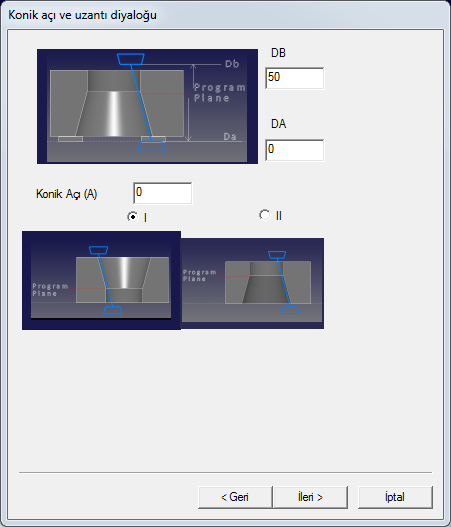

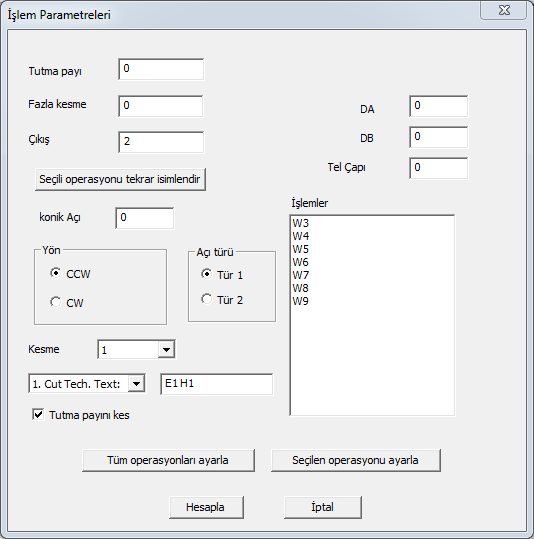

Some GUI pages for SolidCNC wire EDM module

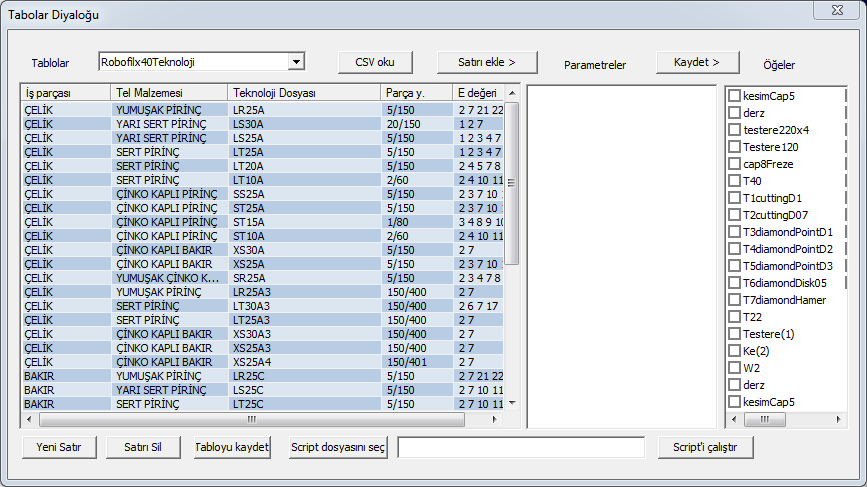

Users can add their machine tools technology data by exporting CSV files from MS Excel software. They may modify the original data by their own expertise and record this on SolidCNC pages

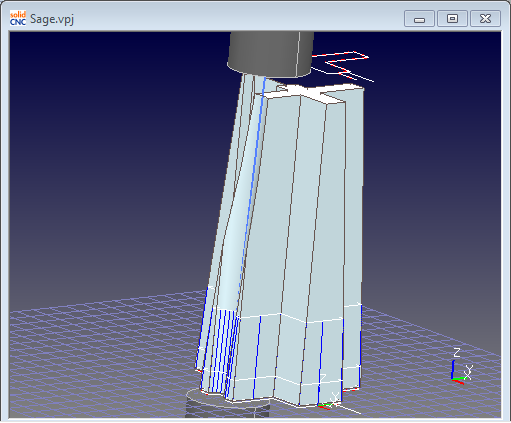

Courtesy of SAGE–Ankara 2013 , 4 axis wire cutting application on a Charmilles – Robofil machining center
