Defining cut number

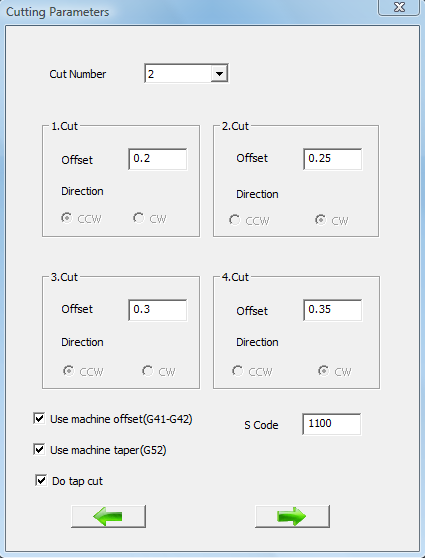

Choose the cut number . If you defined a tap distance and your contour is not closed, at the end a cut for closing the contour and cutting out the part will be added. If you do not want the contour to be closed uncheck the 'Do tap cut' check box and the contour will not be closed. If you want the part to be cut out leave this option checked. When you click next wire-paths will be calculated.

Click here to continue.
